Neon sign

From Wikipedia, the free encyclopedia

Manufacturing process



Lead glass tubing in external diameters ranging from about 8 to 15 mm is most commonly used. The tube is heated in sections using several types of burners that are selected according to the amount of glass to be heated for each bend. These burners include ribbon, cannon, or crossfires, as well as a variety of torches that run on a simple combination of natural gas (butane or propane work better, however natural gas is cheapest) and air.

A section of the glass is heated until it is malleable; then it is bent into shape and aligned to a pattern containing the graphics or lettering that the final product will ultimately conform to.

An electrode is melted (or welded) to each end of the tube as it is finished. The electrodes are also lead glass and contain a small metal shell with two wires protruding through the glass to which the sign wiring will later be attached. All welds and seals must be perfectly leak-proof before proceeding further.

The tube is attached to a manifold which is itself attached to a high-quality vacuum pump. The tube is then evacuated of air until it reaches near-vacuum. During evacuation, a high current is forced through the tube via the wires protruding from each electrode (in a process known as "bombarding"). The current depends on the specific electrodes used and the diameter of the tube, but is typically in the 500mA to 1000mA range, at an applied voltage usually between 15,000 to 25,000V. The bombarding transformer acts as an adjustable constant current source, and the voltage produced depends on the length and pressure of the tube. Typically the operator will maintain the pressure as high as the bombarder will allow to ensure maximum power dissipation and heating. This very high power dissipation in the tube heats the glass to a temperature of several hundred degrees Celsius, and any dirt and impurities within are drawn off in the gasified form by the vacuum pump. The current also heats the electrode metal to over 600 degrees Celsius, which activates a special coating that scavenges unwanted contaminants in the tube and reduces the work function of the electrode for cathodic emission. When completed properly, this process results in a very clean interior at a high vacuum.

While still attached to the manifold, the tube is allowed to cool while pumping down to the lowest pressure the system can achieve. It is then filled to a pressure of a few torr with one of the noble gases, or a mixture of them, and sometimes a small amount of mercury. The required pressure depends on the gas used and the diameter of the tube, with optimal values ranging from 6 torr (for a long 20mm tube filled with argon/mercury) to 27 torr (for a short 8mm diameter tube filled with pure neon). Neon or argon are the most common gases used; krypton, xenon, and helium are used by artists for special purposes but are not used alone in normal signs. A premixed combination of argon and helium is often used in lieu of pure argon when a tube is to be installed in a cold climate, since the helium increases voltage drop (and thus power dissipation), warming the tube to operating temperature faster. Neon glows bright red or reddish orange when lit. When argon or argon/helium is used, a tiny droplet of mercury is added. Argon by itself is very dim pale lavender when lit, but the droplet of mercury fills the tube with mercury vapor when sealed, which then emits ultraviolet light upon electrification. This ultraviolet emission allows finished argon/mercury tubes to glow with a variety of bright colors when the tube has been coated on the interior with ultraviolet-sensitive phosphors after being bent into shape. Plain argon/mercury fill in clear glass is used for a bright but pale blue (or bluish white) color often seen in signs where cost is a major factor.

The finished glass pieces are illuminated by either a transformer or a switching power supply running at voltages ranging between 3,000 and 15,000 volts and currents between 20 and 60 mA. These power supplies operate as constant-current sources (a high voltage supply with a very high internal impedance), since the tube has a negative characteristic electrical impedance. The most common current rating is 30mA for general use, with 60mA used for high-brightness applications like channel letters or architectural lighting. 120mA sources are occasionally seen in illuminating applications, but are uncommon since special electrodes are required to withstand the current, and an accidental shock from a 120mA transformer is much more likely to be fatal than from the lower current supplies. Neon signs are a type of cold cathode lighting.



Troubleshooting Neon Signs

Concealed wiring, strain relief and testing limitations make repairs challenging

You're trying to repair a flickering neon sign. You've just checked 10 neon units and replaced the transformer, but the sign still buzzes and flickers. The store owner pokes his head out the door and asks, "How's it coming?" Too exasperated to admit that you're dead in the water, you muster your best, silly grin and reply, "Ok." The owner goes back inside and you resume banging your head on the ladder rail, inventing new curses.

Conceptually, neon systems are simple; however, their high-voltage circuitry creates certain problems that are difficult to diagnose. The main obstacle to locating problems in the system is the fact that GTO cables are normally concealed. This frequently makes locating shorted wires a difficult and time-consuming task. Short circuits inside metal conduits can create the impression that a transformer is defective, but you shouldn't assume this without testing the system.

Testing tubes, transformers and wiring

On a malfunctioning neon sign, one portion of the copy is normally dark or flickering dimly (Fig. 1). For example, if the letters read "SIGNSHOP" but only the "SHOP" is working, you'll want to check all four letters in the "SIGN" portion for defective tubes. A bad neon tube doesn't transmit current, so the faulty unit won't show any signs of life. Sometimes a unit goes "flat." This means that the internal gas pressure has dropped to the point where the tube can't properly transmit current. The tube may illuminate dimly, but it affects the circuit in much the same way as a dead tube.

Fig. 1: The serviceman can usually locate the malfunctioning letters even in daylight. Notice how the "AQ" is darker than the "UA." In direct sunlight, inspect the neon by looking through the drain holes at the bottom of the letters.

If you notice that the "S," "I" and "N" are flickering dimly, there's a good possibility that the non-flickering "G" unit is defective. Test this by using a piece of GTO wire to "jump-out" the unit (making a direct connection between the inlet and outlet wires) as per Fig. 2. Once the defective tube is bypassed, the other letters -- "SIN"-- should light up brightly with no flicker.

Fig. 2: To test a neon unit, "jump-out" the unit with a piece of GTO between the wiring inlet and outlet. If the unit is defective, the other letters will light up brightly.

After turning off the power, remove the defective neon "G" unit and attach a jumper wire securely in its place using the tube supports. Because most servicemen are not tubesmiths equipped with portable neon plants, it's going to be at least a couple of days before the job is finished. You must ensure that the bare ends of the jumper wire are in firm contact with the inlet and outlet wires. This normally means twisting the wires together and insulating the splices or pushing the ends firmly down inside the electrode housings. The bad news is that this temporary jumper will cause the sign to read "SI NSHOP" when illuminated, but the good news is that the transformer is spared the strain of a constantly shorting neon circuit until you return. In some cases (see "Sign Shorts": Harry's Cocktails,"), the shop owner may choose to turn off the sign until complete repairs are made.

Unfortunately, you'll sometimes find that, even when all the neon units are good or the bad unit(s) have been jumped, the sign still flickers dimly. You immediately think "transformer," but you'd better think again. A burned-out transformer frequently won't provide adequate current even for the tubing to flicker. Inspect the transformer for any obvious signs of damage. If tar is leaking profusely from the casing seams, the transformer is probably defective.

Electrical Tests

The first electrical test is to check for proper supply voltage (normally 120V). Low voltage is the most common problem, and a 120V neon transformer requires a minimum of 108V across the primary input terminals. You should also check the mechanical grounding connection. This may consist of a green or bare wire (where plastic conduit or sheathed cable has been used), or a continuous line of metal conduit (EMT) from the T-box back to the electrical panel. Also check any mid-point grounding wires for proper attachment to the transformer posts.

To test transformer output, shut off the power and disconnect both GTO leads from the transformer posts. The "short-circuit test" is performed with a portable milliammeter as shown in Fig. 3. With the power On, the reading should fall within a range of 27-33mA for 30mA transformers or 54-66mA for 60mA transformers. If the transformer does not test within this range, it is defective and must be replaced. Conversely, if the transformer does test properly, the problem must either be the GTO wiring or the transformer loading. Because they are actually composed of two 7500V transformers connected in series, 15,000V transformers must be tested one side at a time (Fig. 4).

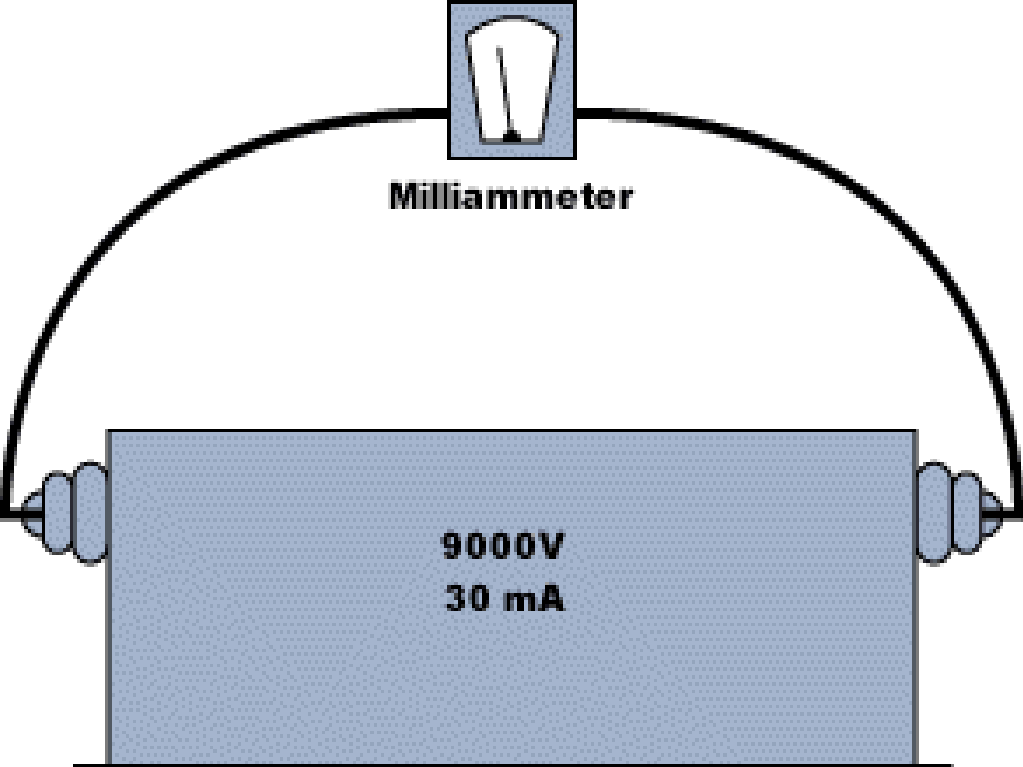

Fig. 3: A short-circuit test is performed with the tubing load disconnected. Milliammeter leads are attached to the transformer's secondary terminals.



Fig. 4: When testing a 15,000V transformer, check each side of the transformer individually because this is actually two transformers in one.

The apparatus necessary to test GTO wire for concealed defects is hardly standard equipment for most signshops. Unlike lower voltage wiring for AC and DC circuits that can be field-tested using a pocket-size multimeter, testing high-voltage wiring requires more elaborate and expensive equipment. When I spoke with Allanson's (Toronto, ON) Tony Efantes, he agreed that developing a more affordable, portable tester for GTO is a need that the industry should address. For the time being, however, visual inspection and "jump-testing" of GTO wiring are the only alternatives.

It's easy to test the loops between individual neon units or channel letters, because you can jump-out the suspected wire(s) from the front of the sign. In most cases, however, you can't jump-out the two ground return wires running back to the transformer box unless you're prepared to drill holes through the wall and/or the channel letters for inserting your test wires. Unfortunately, most of the problems that develop in neon wiring occur in these ground return paths.

To inspect this wiring, turn off the power and detach the conduit from the transformer box. Then, unscrew the metal housing jacket from the glass insert at the opposite end of the conduit. Slide the conduit and metal housing jacket back to expose the GTO. Faulty GTO wiring is easy to identify, typically having melted or charred insulation with the copper core exposed. If the wire needs to be replaced, remove the strain relief connector, reattach the metal jacket and connect a new wire to the end of the old GTO by twisting the stripped ends together in-line (Fig. 5). Cover this splice with electrical tape to prevent snags when pulling.

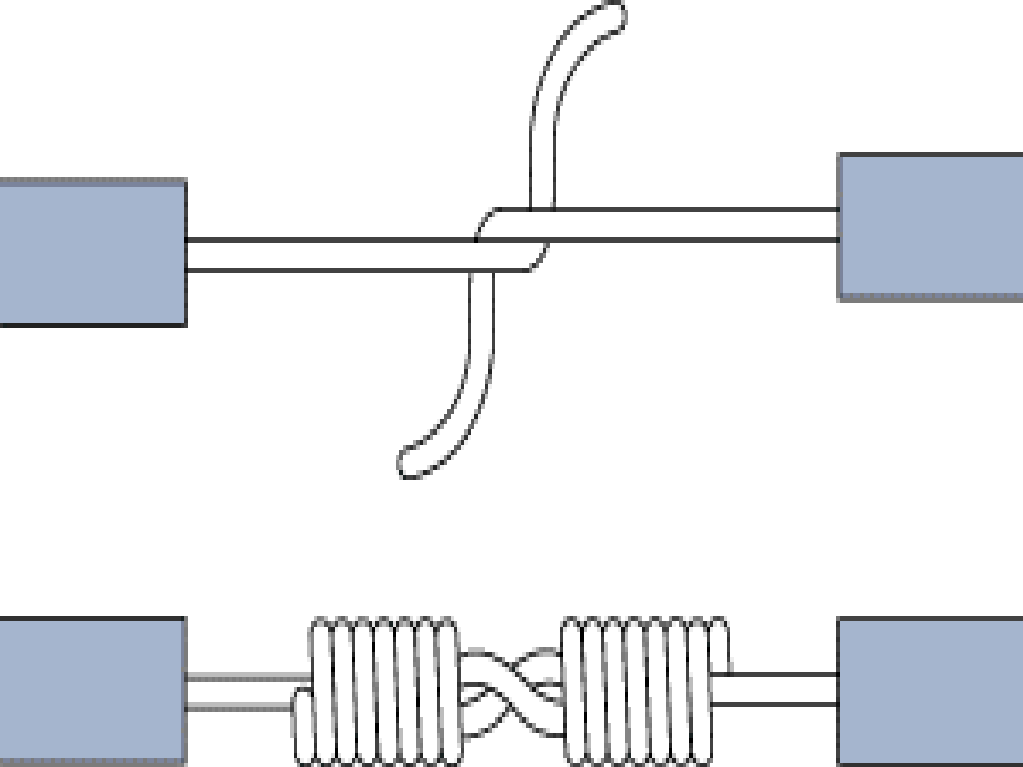

Fig. 5: To connect wiring for pulling through conduits and/or housings, use this method and cover the connection with electrical tape to prevent snags.

Next, from the front of the sign, remove the neon tubing (with power Off). With your finger or a pair of needle-nose pliers, reach down into the electrode housing and grasp the spring connector to pull the GTO completely out of the conduit as the new wire is pulled through. After pulling the end of the new wire through the front of the electrode housing, disconnect the old GTO and attach a spring connector to the new wire. Push the wire back until the spring connector seats at the rear of the glass housing sleeve. Don't forget to reattach the other end of the conduit securely to the transformer box when you reconnect the GTO to the transformer.

Relief or pain?

Although I appreciate the function of strain relief in electrical systems, these connectors can create more problems than they solve when used on high-voltage neon wiring with electrode housings. In addition to making the replacement of bad GTO wires difficult, the connectors can actually cause short circuits in some cases. This is because the connectors are made with an outer metal ring that is crimped with pliers for attachment to the GTO. If the installer crimps the connector too firmly, the metal crimp ring bites into the GTO's insulation. High-voltage current arcs to this metal as soon as the sign is energized. Even when the crimp ring does not penetrate the GTO covering, dampness can cause the high-voltage current to arc to the metal.

These kinds of concealed shorts can drive a serviceman crazy, because he must remove conduits or perform extensive testing to locate them. In some cases, signs must be completely rewired because several strain relief connectors are shorting-out the system.

Another problem is that there seems to be considerable confusion regarding exactly where the strain relief should be located. The proper location is inside the housing's metal jacket, just behind the inner glass sleeve. Some installers, however, apparently believe they should be inside the glass sleeve. Considering these shortcomings, I question the value of strain relief on high-voltage neon wiring. I'm not an electrical engineer, but I think it's a mistake to assume that every priniciple applicable to lower voltage wiring should automatically be extended to neon wiring. At the very least, someone needs to develop a non-conductive method of strain relief. If you're lucky, the installer thought those "little silver discs" included with his sign hardware were just spare parts and left them at the shop.

Transformer loading problems

Loading refers to the size and length of tubing in a particular neon circuit operated by a given transformer. Both overloading and underloading a transformer can cause failure. Overloaded transformers provide inadequate current for the length of tubing operated. This frequently causes the GTO insulation to break down and the wiring to short-out. It can also burn out the transformer. Underloaded transformers create excessive heat throughout the system. Both the tubing and transformer will typically "run hot," leading to early failure. Because transformers are designed with an 80% load factor (80% of the short circuit current rating), the optimum load currents are as follows:

20mA transformers: 15.5-16.5mA

30mA transformers: 23-25mA

60mA transformers: 46-50mA

To test actual transformer loading, turn off the power and connect a milliammeter in series with the neon circuit and the transformer (Fig. 6). Turn on the power and observe the milliammeter reading. For a typical 30mA transformer, a low reading of 15mA indicates overloading, while a high reading of 29mA indicates underloading. If the transformer is overloaded or underloaded, you have the options of either installing a different transformer or altering the tube-loading arrangement. It's a mistake to assume that the original installer necessarily observed proper loading requirements. Perhaps the original transformer has been replaced with the wrong size (ie, a 15,000V transformer replaced by a 12,000V unit). In cases of chronic transformer failure, always consider transformer loading as a potential cause. However, unpainted T-boxes can also radically shorten transformer life.

Fig. 6: To test transformer loading, connect a milliammeter "in-line" with the neon circuit as shown here.

After you've completed testing and replaced any defective components, the sign should illuminate properly. Sometimes you may need to install bonding jumpers to curtail humming or buzzing caused by poor metal-to-metal contact throughout the system.

This may also be caused by loose conduit connectors or metal housing jackets that can simply be tightened to correct the problem. When the ground return path (either of the two secondary leads from the transformer) is more than 6 ft., bonding jumpers are required regardless of other factors.

Probably the best thing you can do for your customers is to let them know if they have a faulty or substandard installation. I've seen plenty of exposed GTO wires "snaking" through the spaces above storeroom ceilings. I've also seen "hot" GTO splices in crawl spaces and other notably combustible areas. If your client has a potential catastrophe lurking above his head, he'll probably thank you for letting him know. The words "fire hazard" always seem to command attention. It may cost the owner some money to have a poor installation redone, but it's a bargain
